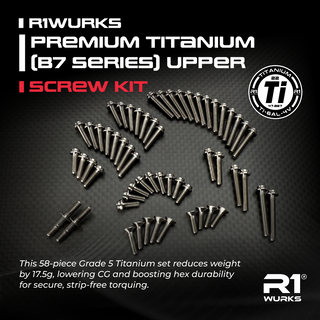

R1WURKS Premium Titanium B7 Upper Screw Kit
This 58-piece set replaces the upper steel screws with lightweight, ultra-high quality Grade 5 (6Al-4V) Titanium screws. Not only will this set lower the CG of your vehicle with a weight reduction of 17.5 grams, but you’ll also benefit from increased hex durability of the precision-broached 2.5 hex socket button head screw, allowing you to torque the screws without the worry of stripping out the hex.
Features and Specifications:
- Ultra-High precision swiss machining
- High-strength grade 5 (Ti-6Al-4V) titanium
- Tight tolerance hex broaching
- Cold-formed threads for improved grain structure and increased material hardness
- Titanium Lower Shock Mounts included
- 2.5mm hex provides higher torque capacity and greatly reduces the risk of stripping
- Lightweight head design
- Reduced center of gravity
- 17.5 grams lighter than steel hardware

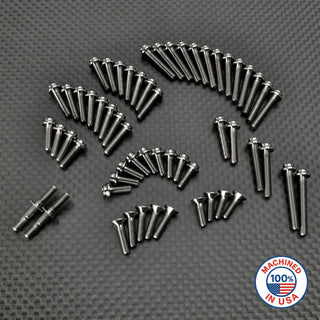

Kit Includes:
(Please refer to the manufacturer's manual for details on where each screw is used, with corresponding page numbers and steps provided below)
M3x8mm (9pcs)
x8 Steering and camber plates – Page 9, Step 2
x1 Rear Gearbox cap center top – Page 12, Step 3
M3x10mm (4pcs)

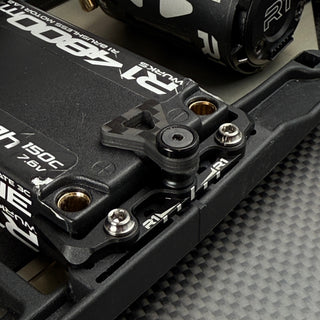

x4 Battery holder, left and right – Page 20, Step 3
M3x12mm (15pcs)
x4 Left and right rear hubs – Page 14, Step 1
x7 Rear shock tower – Page 13, Step 6
x2 Steering rack – Page 5, Step 2
x2 Optional Low Profile Battery latches – Page 20, Step 3
M3x14mm (2pcs)
x2 Steering knuckle top – Page 9, Step 3
M3x16mm (13pcs)
x3 Front top plate – Page 7, Step 5
x4 Gearbox case – Page 11, Step 1
x4 Gearbox cap – Page 12, Step 3
x2 Steering knuckle bottom – Page 9, Step 3
M3x18 (2pcs)
x2 Standard profile battery latches - Page 20, Step 3
M3x22mm (2pcs)
x2 Front lower shock mounting screws – Page 18, Step 7
M3x10mm Flat Head (4pcs)
x4 Front shock tower – Page 8, Step 8
M3x12mm Flat Head (5pcs)
x3 Motor Mount – Page 12, Step 4
x2 Wing Mount – Page 21, Step 5
Titanium Lower Shock Mounts (2pcs)
x2 Rear suspension arm shock mounts - Page 9, Step 1

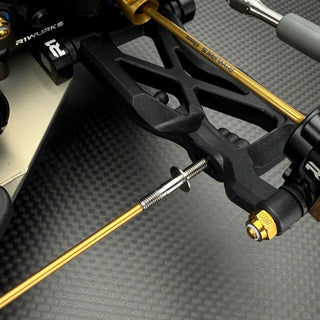

Lower Shock Mount Instructions: For easier installation of the shock mounts, pre-thread the arm mounting holes using a steel screw. For harder materials like carbon-filled nylon, it's recommended to pre-thread the holes and apply grease to the threads for easier assembly.
Note: These shock mounts feature both left-hand and right-hand threads. Use a counterclockwise rotation for installation.
Disclaimer: Our products are not manufactured, authorized, or endorsed by Associated Electrics Inc. R1Wurks is an independent manufacturer of aftermarket parts designed to fit Associated Electrics Inc.’s B7 and B74 RC cars. All brand names, trademarks, and registered trademarks are the property of their respective owners. The use of these names, trademarks, and brands is for identification purposes only and does not imply any affiliation or endorsement by Associated Electrics Inc.
