R1WURKS Titanium Flanged Screws, M3 Button Head (2pcs)
Our popular M3 button head screws are now available with a larger flanged head for improved load distribution. They’re perfect for motor mounting, servo installations, and any application where enhanced holding power from a wider head is beneficial. These screws also feature a precision-broached 2.5mm hex socket, allowing for reliable torque without the risk of stripping the hex, a common issue with screws of this type that rely on a smaller 2mm hex.
Features and Specifications:
- In-House Ultra-High Precision Swiss Machining
- High-strength grade 5 (Ti-6Al-4V) titanium
- Tight tolerance hex broaching
- Cold-formed threads. Unlike traditional cut threads, which disrupt the material’s natural grain structure, cold-formed threads are rolled into shape, refining the metal’s grain flow for a stronger, more uniform structure.
- 2.5mm hex provides higher torque capacity and greatly reduces the risk of stripping
- Larger head spreads the clamping force over a wider surface
- Securely fastens to aluminum or soft materials without causing distortion or surface damage
- Lightweight head design
Color Options:
- Silver (Natural Titanium)
Includes:
- Two flanged button head screws (select preferred size)
Recommended Screw Lengths for Various Applications:
- Motor plates (5mm thick, B7): Use 8mm length
- Motor plates (3mm thick, XB2, LD3, 22X): Use 6mm length
- Motor Cam (B74.2): Use 10mm length

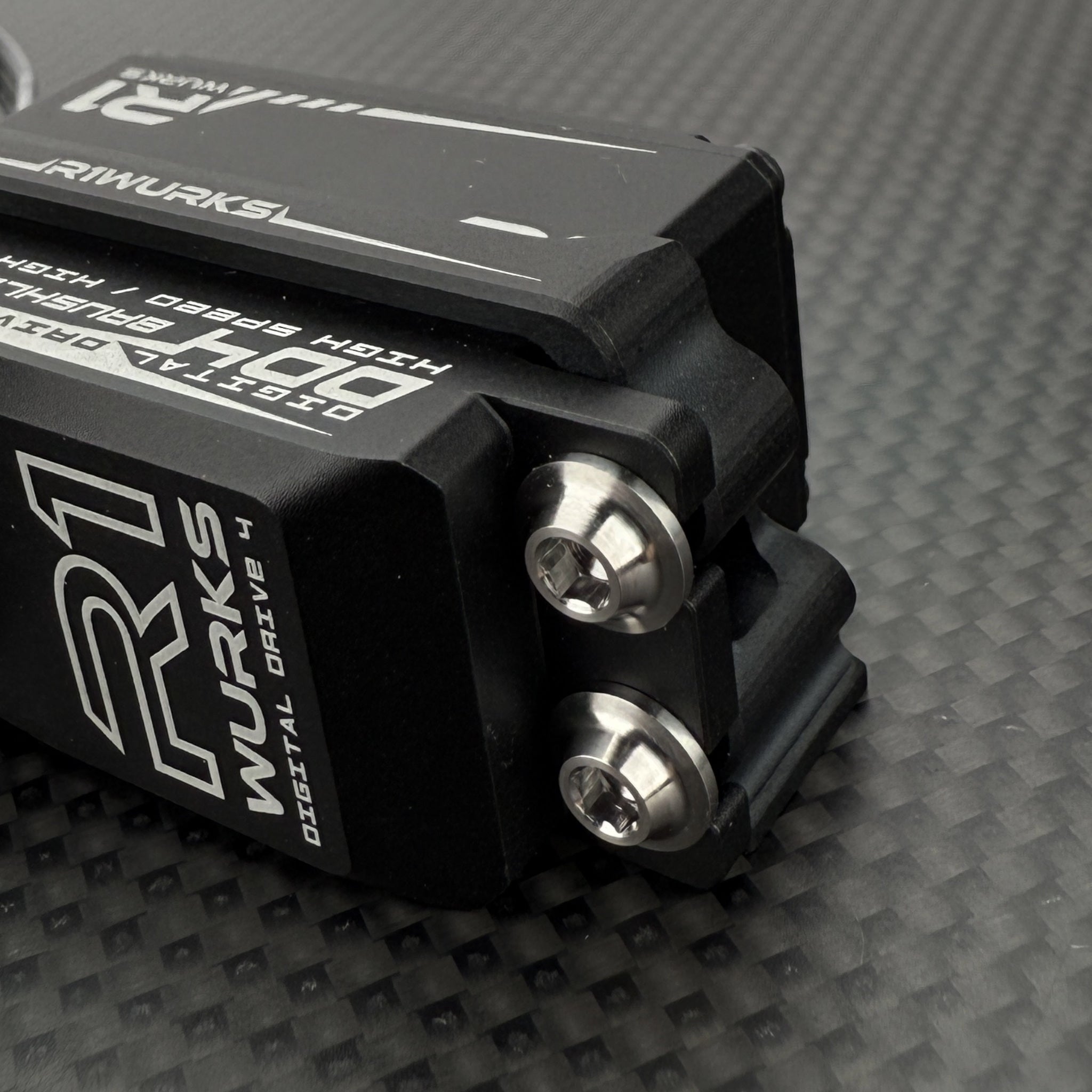

- Servo mounting: Use 6mm length
