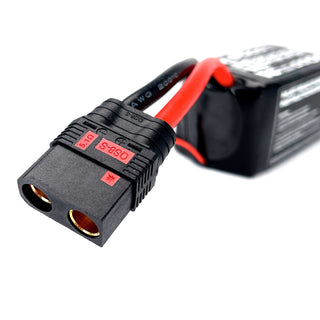

The QS8-S Anti-Spark Connectors, a premium solution tailored for high-voltage applications. These connectors are distinguished by their exceptional quality and robust current handling capabilities, rendering them the perfect choice for a wide range of high-power requirements. Notably, they can endure surges in excess of 300 amps, all thanks to their ingenious design that effectively eliminates the spark and audible "SNAP" when connecting the battery.
Features:
- Enhanced Connector Lifespan with Anti-Spark Technology
- Constant Current Rating: 110A / Peak Current Rating: 300A
- High-Quality 8.0mm Plated Brass Bullet Connectors
- Ideal for High Voltage Applications
- Sturdy Nylon/Fiber Composite Housing
Specifications:
-
Connector Diameter: 8.00mm
-
Material: Plated brass and durable nylon composite
-
Safety: Flame-retardant with a UL94 V0 rating
-
Temperature Range: Up to 200°C
-
Voltage: Rated for 600V DC
-
Current Capacity: 110A continuous, 300A+ peak
-
Wire Compatibility: Up to 6 AWG
-
Size / Weight: 29.5mm width, weight: 23g (Female)
Includes:
- 1 QS8-S Female Anti-Spark Connector
- 1 Wire Cap
NOTE: Battery shown in photos is for reference only, and is not included.
