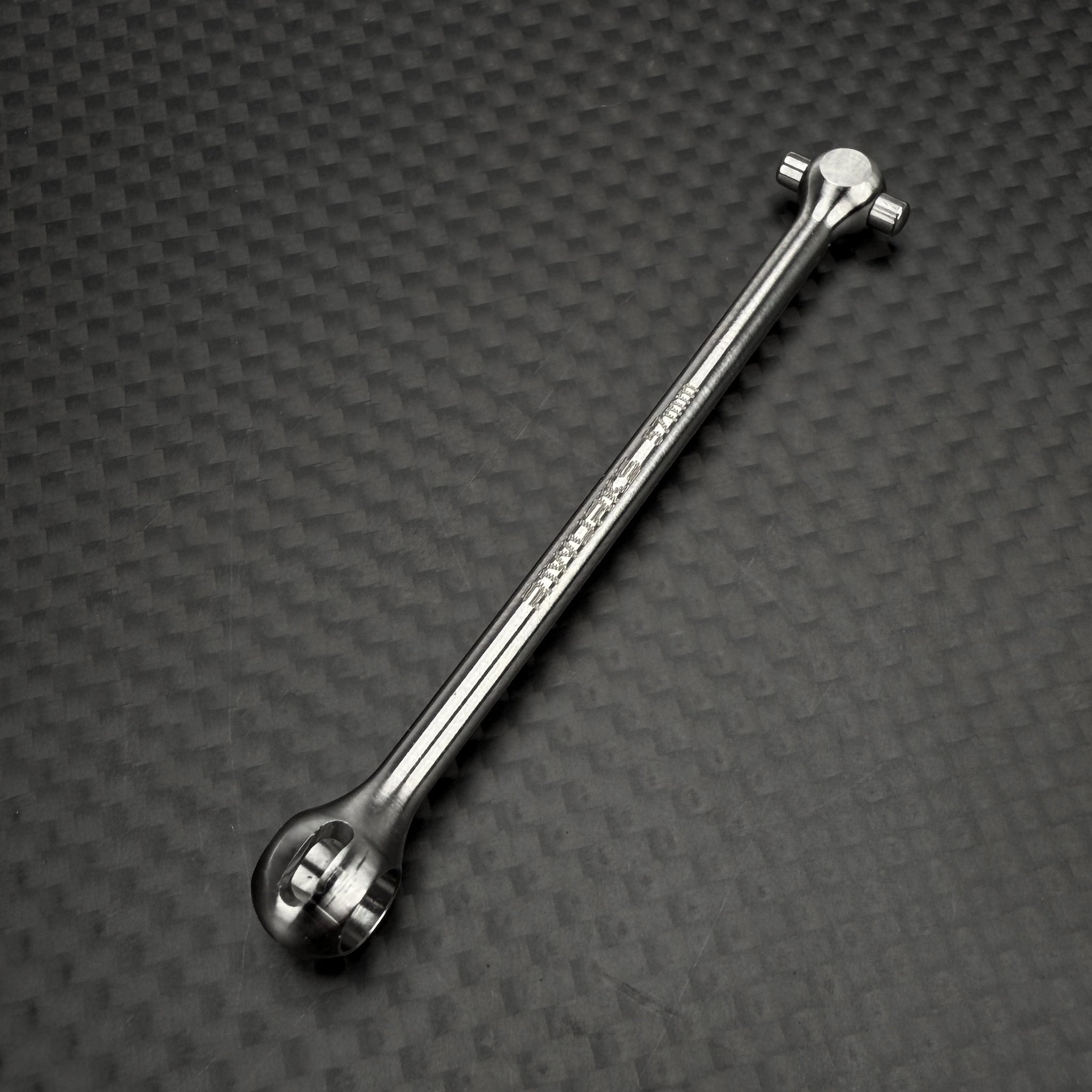

R1WURKS (B84 Series)
Ultra-lightweight Titanium Center CVA Bone, 57mm
This 57mm front center CVA bone is designed for use with the 102mm rear center bone when the center-differential / motor mount are shifted 7mm forward into the optional forward mounting holes, creating a more forward weight-biased configuration.
This bone is made from specially treated Ti 6Al-4V grade 5 titanium alloy, these parts offer exceptional strength and a substantial reduction in rotational inertia. It provides quick acceleration and deceleration, giving stock racers a crucial competitive advantage.
Application
- When moving the center diff-configured motor mount and differential 7mm forward into the optional forward mounting holes, Use this 57mm front bone together with the 102mm rear bone.
- This ultra-lightweight bone is optimized for stock racing, specifically for the 13.5 to 17.5 classes.
Key Features and Specifications
- Enables optional forward position of the motor and differential.
- Ultra-lightweight at just 2.7g
- In-house ultra-high precision tight tolerance swiss machining
- Made from treated Ti 6Al-4V grade 5 Titanium alloy
- Improved acceleration
- Better braking response
- Increased power transfer
- Lower overall vehicle weight
- Laser-etched logos and identification markings
Includes
- One CVA center bone
Fits
- RC10B84 with center diff. (Must use with 102mm rear center bone and motor forward center braces)
REQUIRED
- 900280 R1WURKS (B84 Series) Ultra-lightweight Titanium Center CVA Bone, 102mm Or AE #92551
- Motor forward front and rear center chassis braces. Included with vehicle, 92503
DISCLAIMER: All trademarks, product names, and company names or logos mentioned are the property of their respective owners. The use of these trademarks, names, or logos is for identification and compatibility purposes only and does not imply any affiliation or endorsement by the trademark holders.
