R1WURKS Premium Titanium B7.1 Upper Screw Kit

Features and Specifications:

• In-House Ultra-High Precision Swiss Machining
• High-strength grade 5 (Ti-6Al-4V) titanium
• Tight tolerance hex broaching
• Cold-formed threads. Unlike traditional cut threads, which disrupt the material’s natural grain structure, cold-formed threads are rolled into shape, refining the metal’s grain flow for a stronger, more uniform structure.
• Titanium Lower Shock Mounts included (Dirt version)
• 2.5mm hex provides higher torque capacity and greatly reduces the risk of stripping
• Lightweight head design
• Reduced center of gravity


Kit Options:

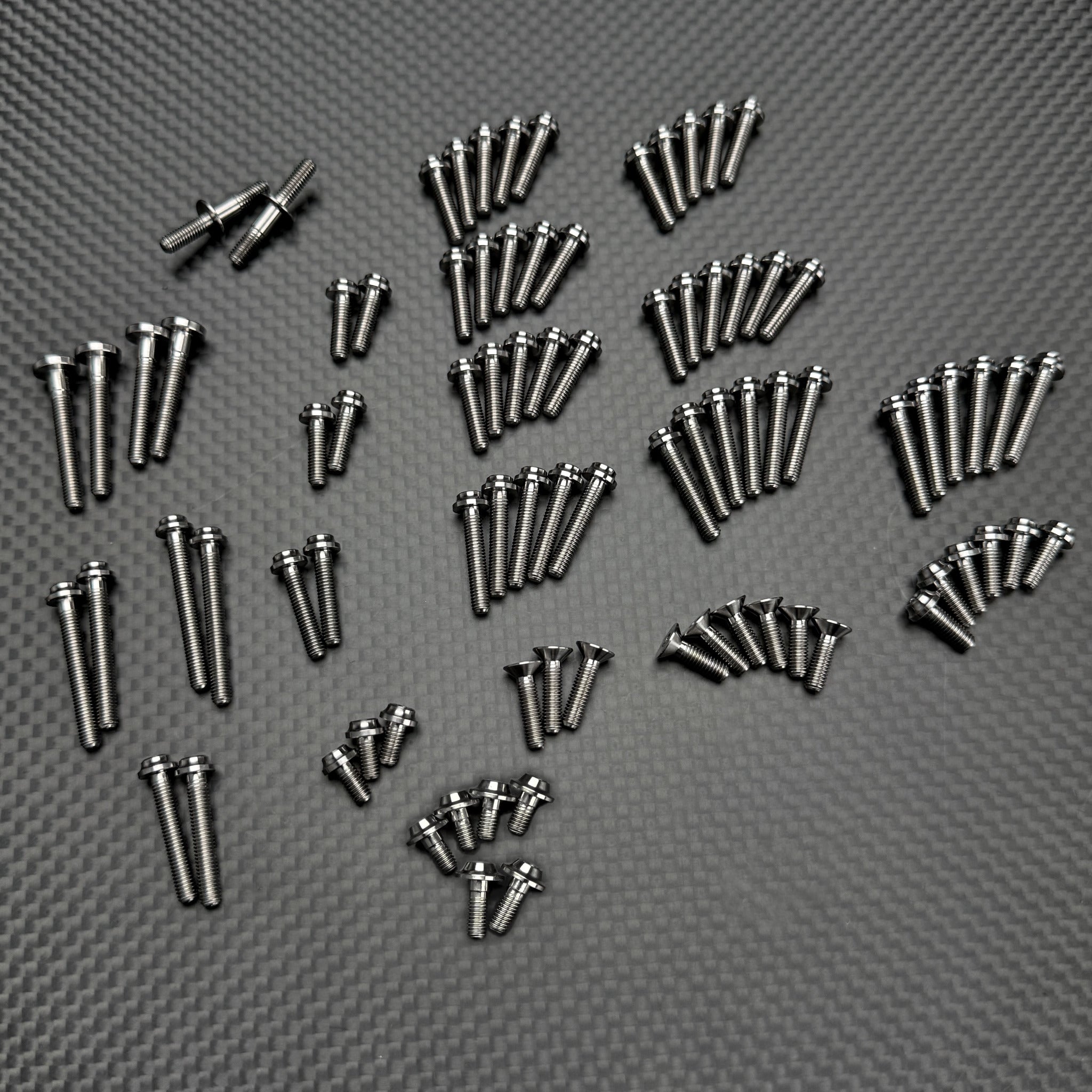

• Dirt Spec (85 piece set)

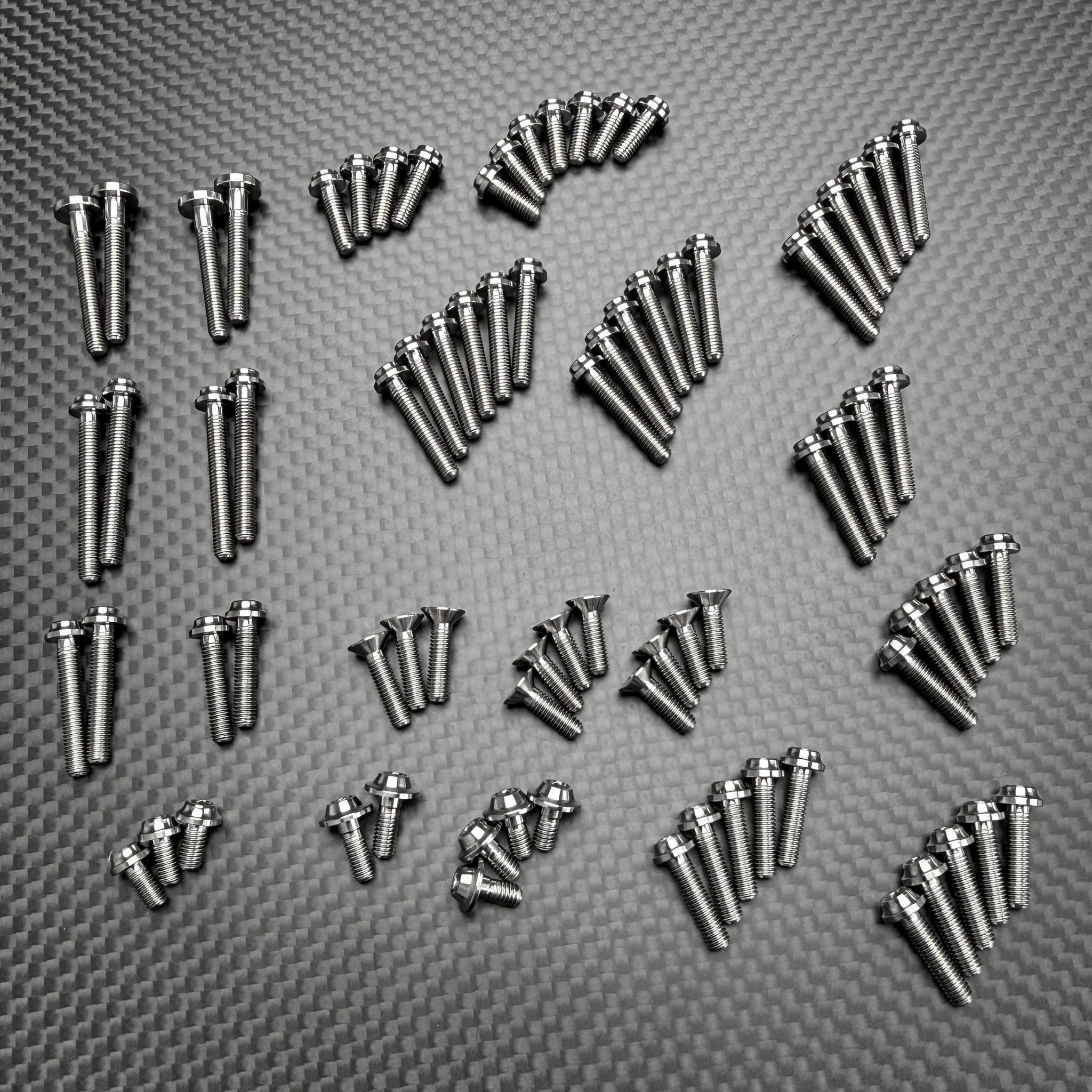

• Carpet Spec (79 piece set)

Color Options:

• Silver (Natural Titanium)

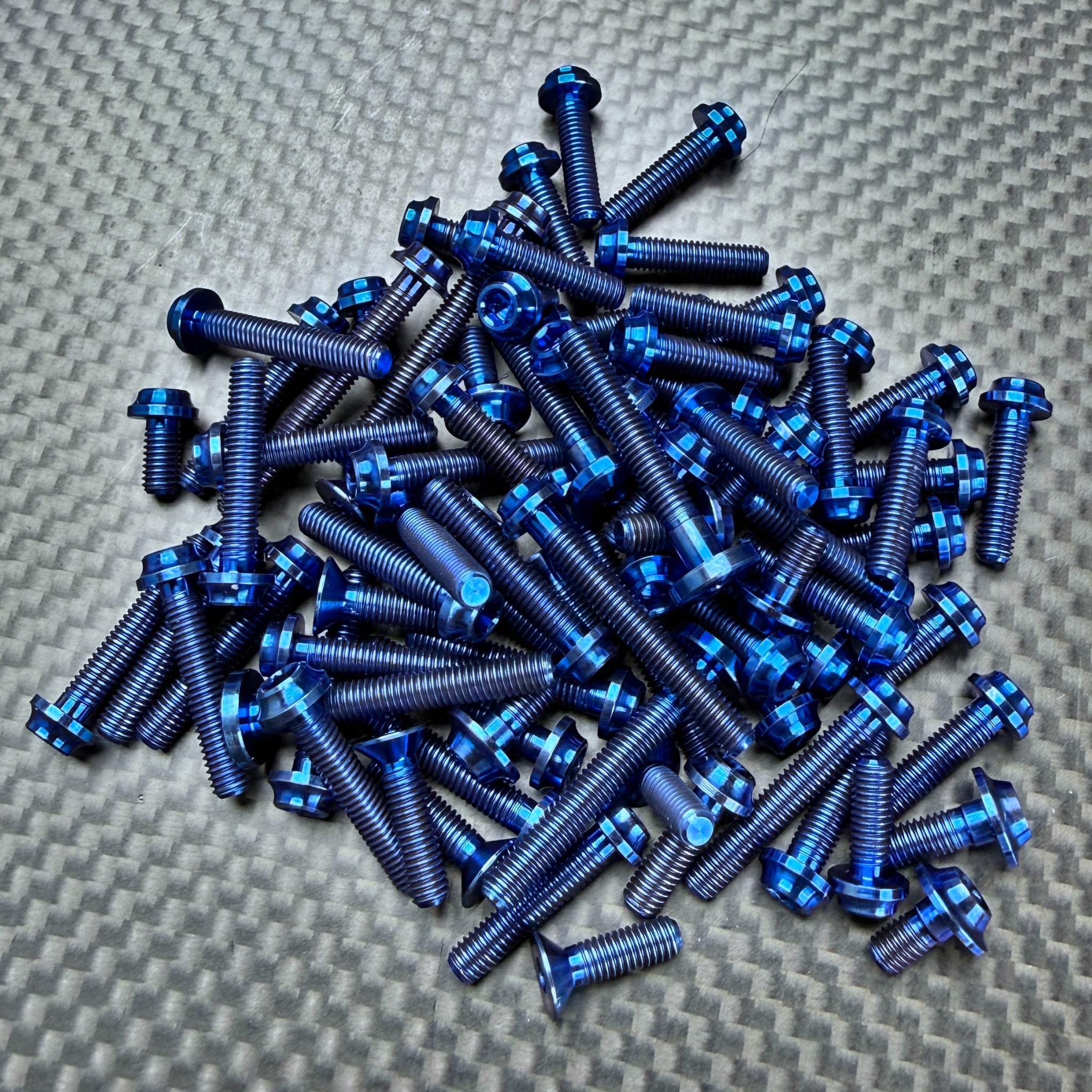

• Blue

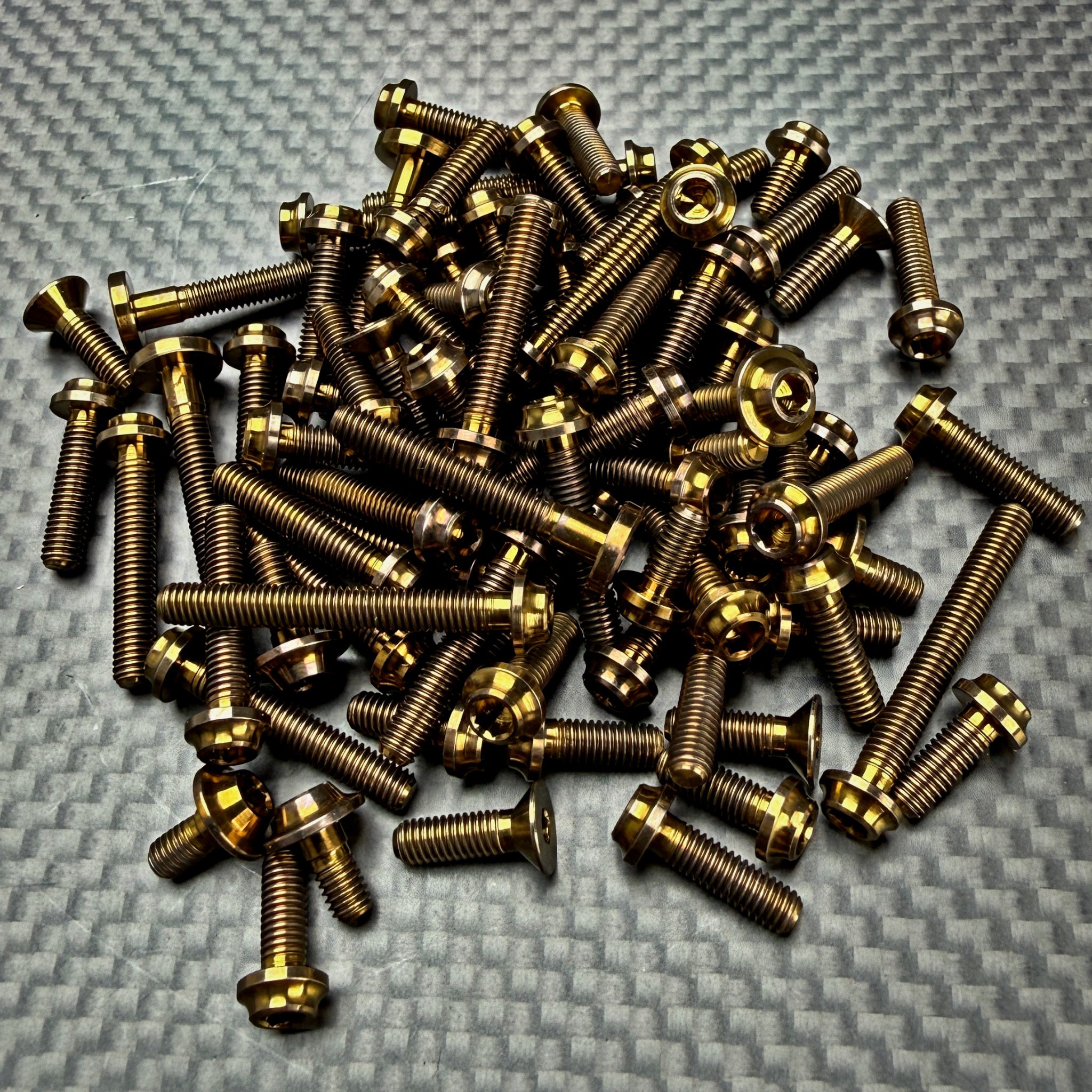

• Bronze

Kit Includes:

(Please refer to the manufacturer's manual for details on where each screw is used, with corresponding page numbers below)

• B7.1 Carpet – Screw List (by Manual Page)
• Page 5: M3x12 (x2), M3x16 (x2)
• Page 6: M3x6 (x1)
• Page 7: M3x6 Flange (x4), M3x16 (x3)
• Page 8: M3x20 Upper Shock Screws (x2), M3x10 Flat Head (x4), M3x6 (x2)
• Page 9: M3x8 (x4), M3x12 (x2), M3x14 (x2)
• Page 11: M3x16 (x3), M3x8 (x2), M3x10 Flat Head (x2)
• Page 12: M3x16 (x5), M2x24 (x2), M3x12 Flat Head (x3)
• Page 13: M3x22 Upper Shock Mount Screws (x2), M3x12 (x1), M3x16 (x6)
• Page 14: M3x12 (x4)
• Page 18: M3x22 (x2)
• Page 19: M3x8 Flange (x2), M3x16 (x2)
• Page 20: M3x10 (x4), M3x18 (x2), M3x12 (x2)
• Page 21: M3x10 Flat Head (x2)

• B7.1 Dirt – Screw List (by Manual Page)
• Page 5: M3x12 (x2), M3x16 (x2)
• Page 6: M3x6 (x1)
• Page 7: M3x6 Flange (x4), M3x16 (x3)
• Page 8: M3x20 Upper Shock Screws (x2), M3x10 Flat Head (x4), M3x6 (x2)
• Page 9: M3x8 (x4), M3x12 (x2), M3x14 (x2), Lower Shock Mount Screws (x2)
• Page 11: M3x16 (x3), M3x8 (x2)
• Page 12: M3x16 (x5), M3x24 (x2), M3x12 Flat Head (x3)
• Page 13: M3x22 Upper Shock Mount Screws (x2), M3x12 (x7)
• Page 14: M3x12 (x4)
• Page 18: M3x22 (x2)
• Page 19: M3x16 (x2), M3x8 Flange (x2)
• Page 20: M3x10 (x4), M3x18 (x2), M3x12 (x2)
• Page 21: M3x10 Flat Head (x2)

*Note* Dirt Version: Lower Shock Mount Instructions: For easier installation of the shock mounts, pre-thread the arm mounting holes using a steel screw. For harder materials like carbon-filled nylon, it's recommended to pre-thread the holes and apply grease to the threads for easier assembly.

Note: These shock mounts feature both left-hand and right-hand threads. Use a counterclockwise rotation for installation.
